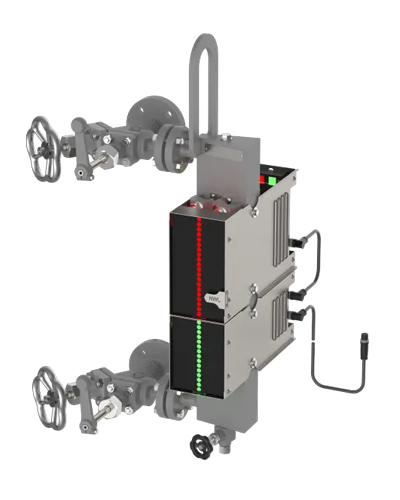

The bicolour level gauge is a direct water level gauge which can be used for steam generators. In the sight opening, the water space is indicated in green and the steam space in red.
The product corresponds to the EU 2014/68/EU. Applied standards as per EN 13445 / EN 12952 / EN 12953 / AD 2000 or ASME-Boiler.
Body material carbon steel according to ASME
As left sided (mapped) or right sided model
Sight length see table
With drain valve and ventilation plug
Illumination device LEDSecure SOL, IP67
Shutoff valves type A130, A150 and A220
Drain valve type AV500, AV520
Other drain valve
Low level mark
