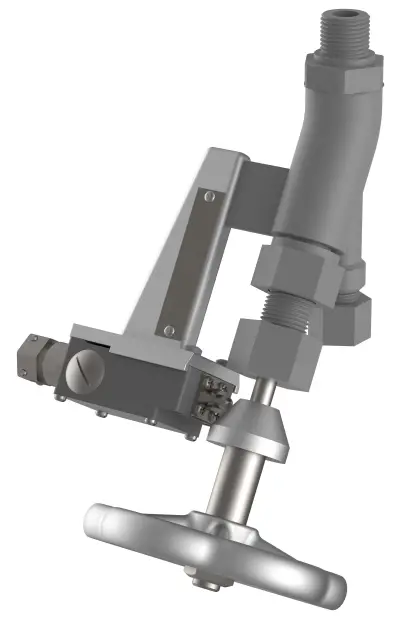

The drain valve is used to drain instruments or to drain fillings of instruments. The area of application comprises with the entire product range of float switches
Inlet: male thread G ½
Outlet: cutting ring connection ø 12 mm (DIN 2353-DS12)
Body material: carbon steel as per DIN or ASME
Inner parts of valve: stainless steel,
Handwheel carbon steel (up to PS = 32 bar)
resp. aluminium up to PS = 200 bar
