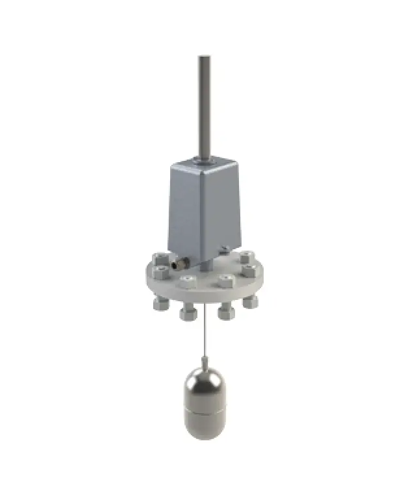

The float switch can be used as water level limiter for steam generators as per TRD 401, 402 or 602. The product corresponds to the EU 2014/68/EU module B and has the CE-mark no. 0035 of the notified body. Applied standards as per EN 13445 / EN 12952 / EN 12953 / AD 2000 or ASME-Boiler.
Protection as per DIN VDE 0470: IP54
Process connection flange DN 100 as per DIN
Magnetic switch type M130-KG (D-07-D-16324-0) für 24VDC / 250Vac
Cable gland as per DIN EN 50262: M20x1,5
Test device
Level indication (signal lamps), data sheet D-07-D-16323-0
