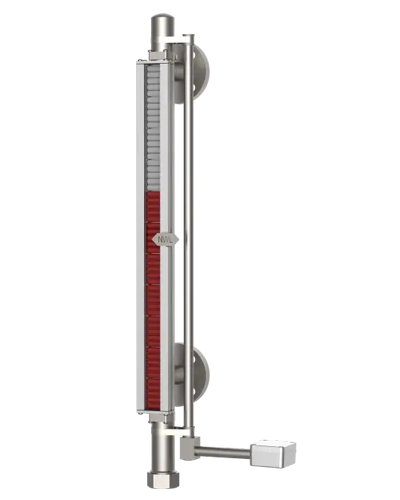

The IGEMA magnetic level gauge NA7-10 is an indirect level gauge. The boiler level is transmitted analogously 1:1 to the indicating ledge via the float.
This product complies with EU Directive 2014/68/EU. The applicable regulations are AD2000 and the ASME Boiler and Pressure Vessel Code.
The magnetic flap indicator is suitable as a water level indicator for fire-tube boilers and water-tube boilers in accordance with DIN EN 12952-7 and DIN EN 12953-6.
Parts in contact with media made of stainless steel
Indicator bar
Flange process connections DN20 or DN25
Magnetic switch type M510-1-60
Measuring transmitter type MRK 110
Bar graph indicator LB25 for optical transmission of the fill level
