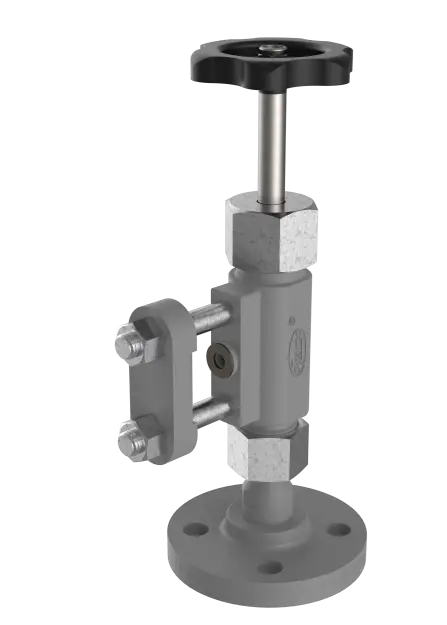

The shut-off valves are used to safely shut off level indicators to the vessel/steam boiler. The range of applications for the shut-off valves covers the product range of reflective, transparent and bi-colour level gauges in the pressure range up to 120 bar.
The product complies with EU Directive 2014/68/EU and the ASME Boiler and Pressure Vessel Code.
They are always equipped with a ball self-closing safety function.
Valve body made of pressure vessel steel according to DIN and ASME
Valve internal parts made of stainless steel
Process connection flange PN40 DN20
Self-closing ball for automatic shut-off in the event of glass breakage
With back seal to relieve the stuffing box packing
Customer-specific process connections
Valve body for A115-CS made of stainless steel according to DIN or ASME
