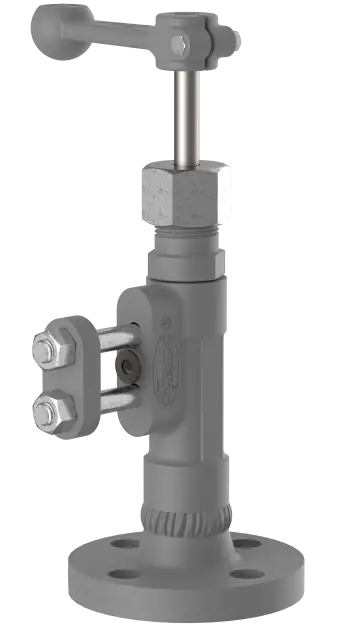

Shut-off valves are used to shut off the indicator safely to the Vessel/Steam Boiler. Shut-off valves are suitable for the whole product range of Reflex-, Transparent- and Bi-Colour Gauges up to PS 120 bar and are actuated with a quick closing spindle with hand lever. The Valve is equipped with self-closing ball for automatic shut off.
Valve Body in Carbon Steel
Internal parts in Stainless steel
Hand Lever (Aluminium) with quick closing spindle (1/3 rotation)
Process Connection DN20/DN25
With self-closing ball
Back seat for easing gland packing
Lever for remote control (eg. by chainwheel)
Specific process connections
